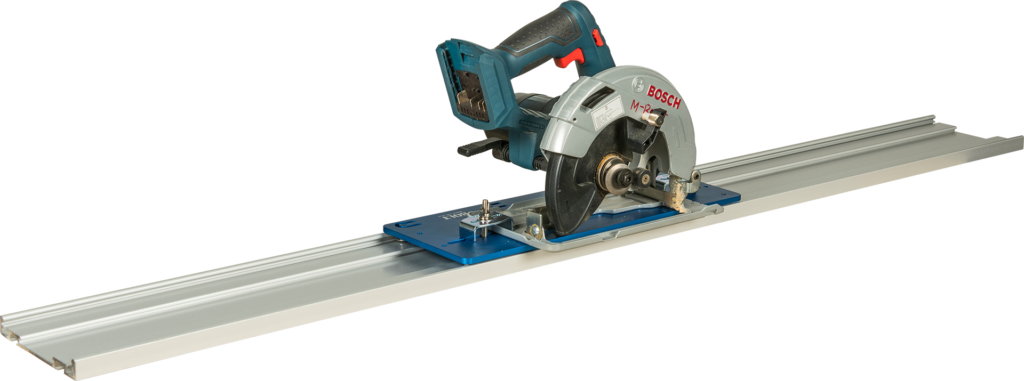

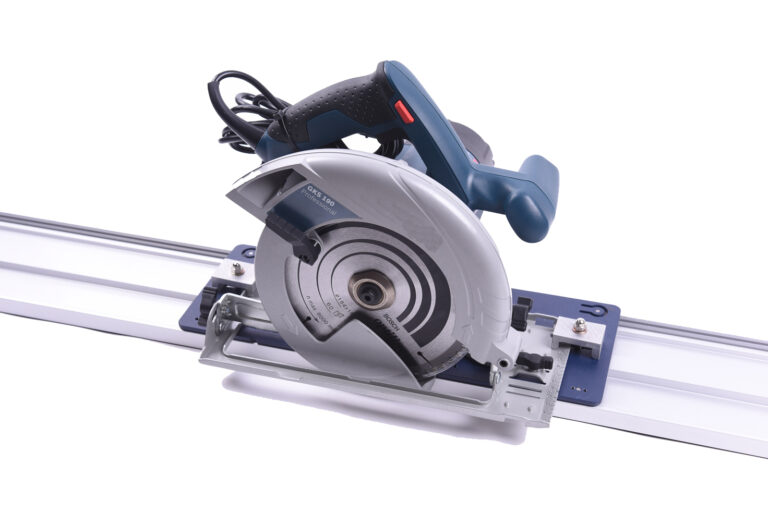

Crircular saw guide B2

Circular saw guide’s Specifications and Features

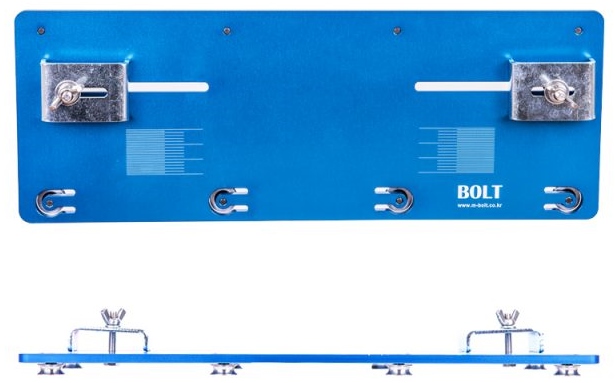

Main Body

► Available for almost any brand of 7~8 inches circular saw
► With 7’’ blade, the maximum cuttable thickness is 35mm

Existing circular saw guide rails fit only their specific models. M-Bolt’s circular saw guide can be equipped with various brands of circular saw products. This guide adopts our home bearing rail technology to help with safe and sophisticated work. Guide rails can be extended using rail joint bars, making them convenient for use in a variety of industrial sites.

Appearance (L x D x H)
140 x 380 x 14
Base : Aluminum 6061/ Parts: Iron Plating, Bearing Steel
Tightening Clip
32 x 50 x 17 x 2.5(±0.3)
Tightening Bolt & Nut
Bolt : M6 Nut : M6
Tightening Size
90mm ~ 360mm T : 1mm ~ 10mm
Maximum cuttable thickness (t)
With 7’’ blade: 35mm
